Description

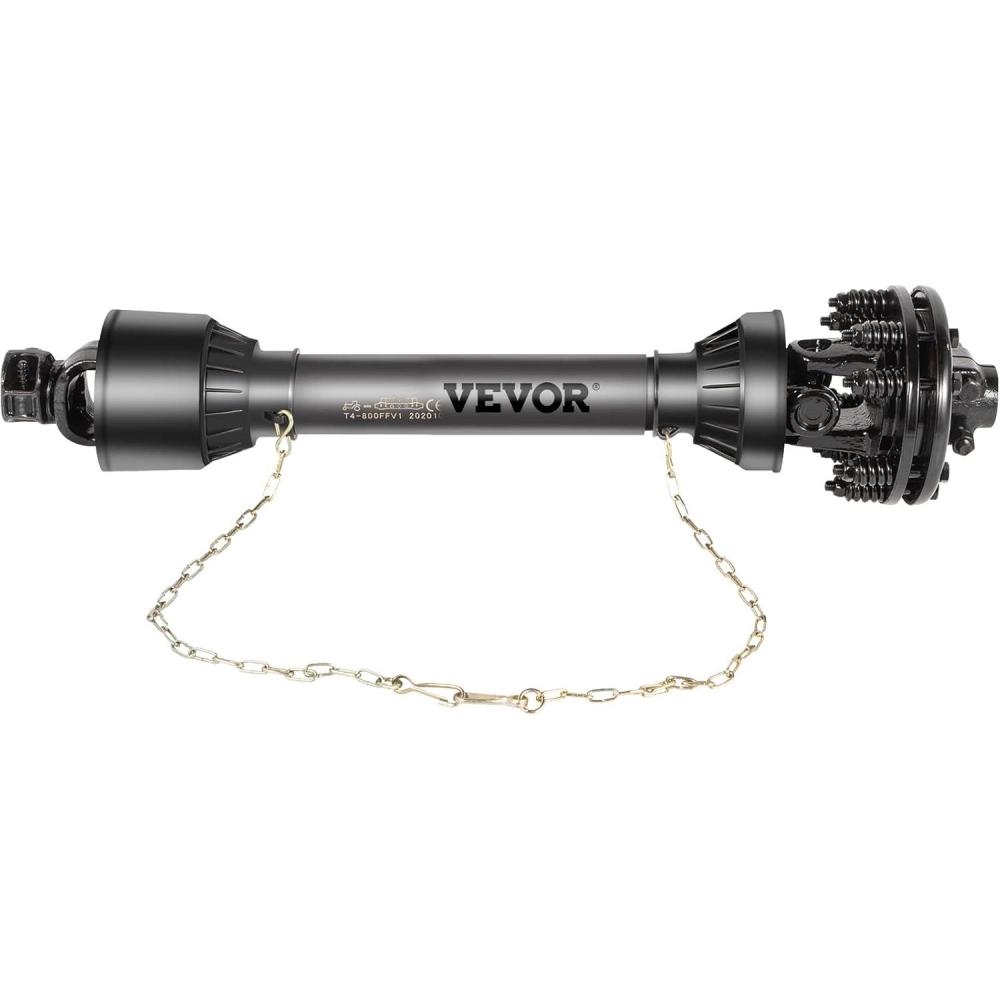

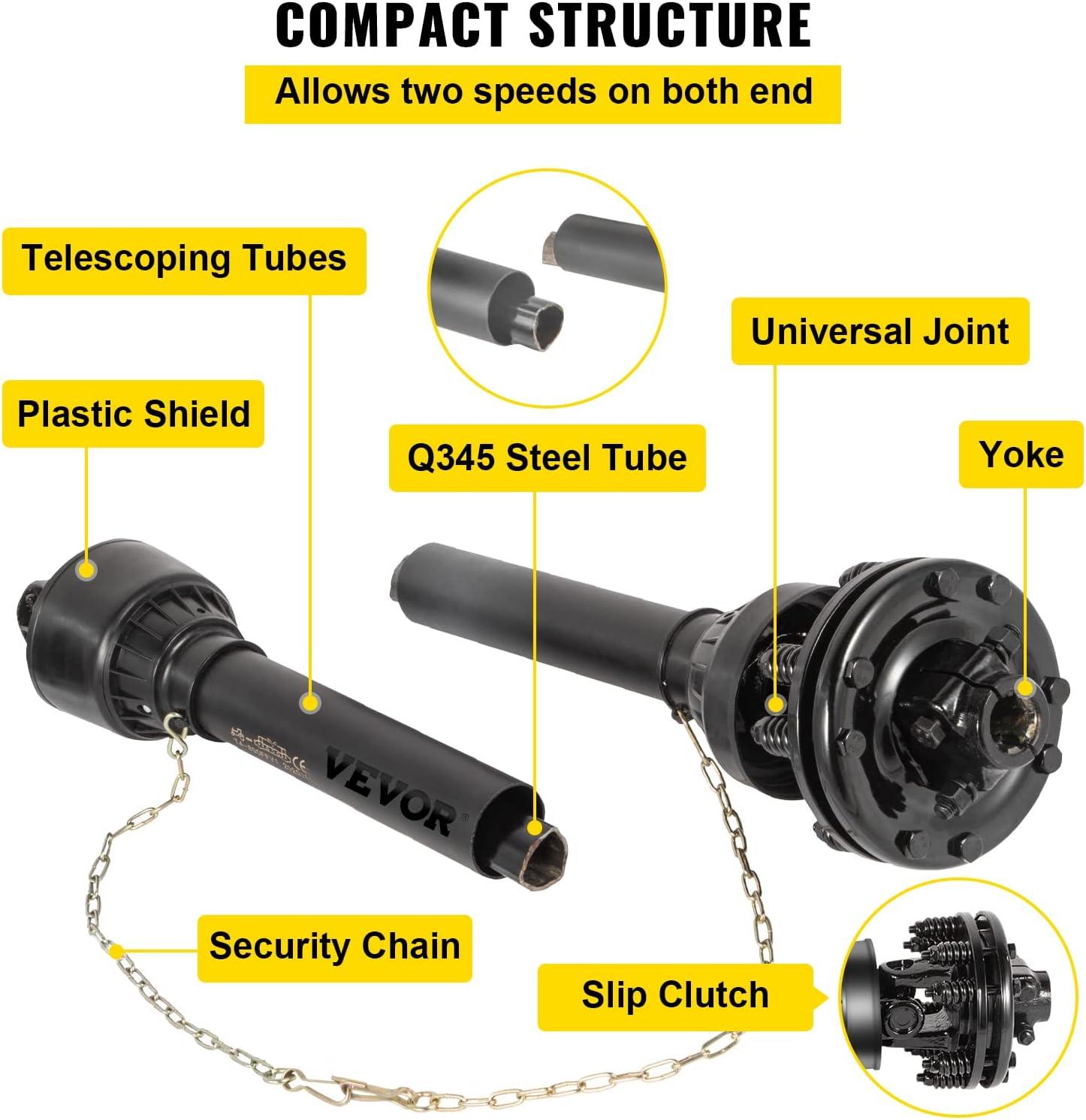

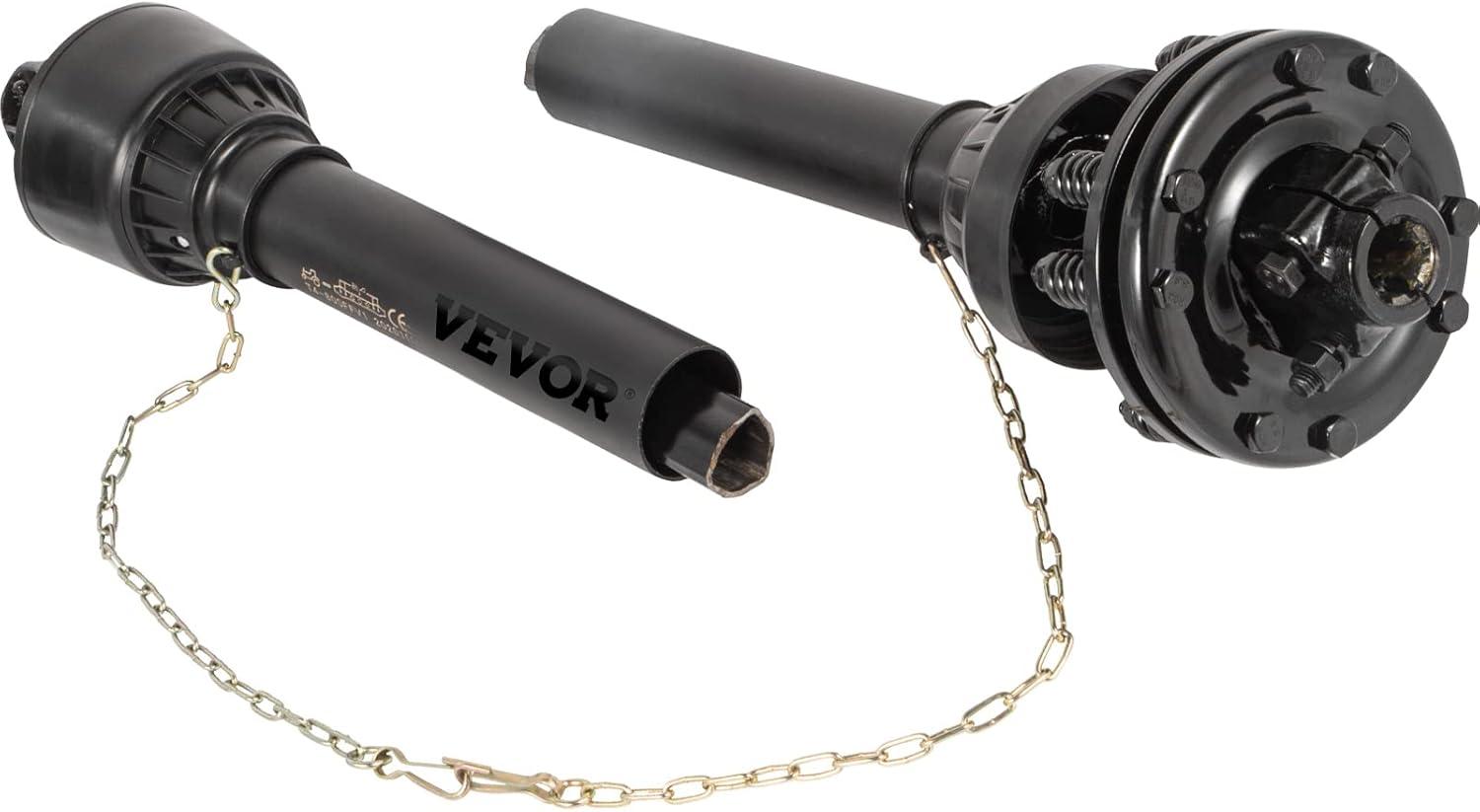

Sturdy and Durable: This PTO shaft is a well-forged series5 driveline shaft with CE certification. It consists of a slip clutch, a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.

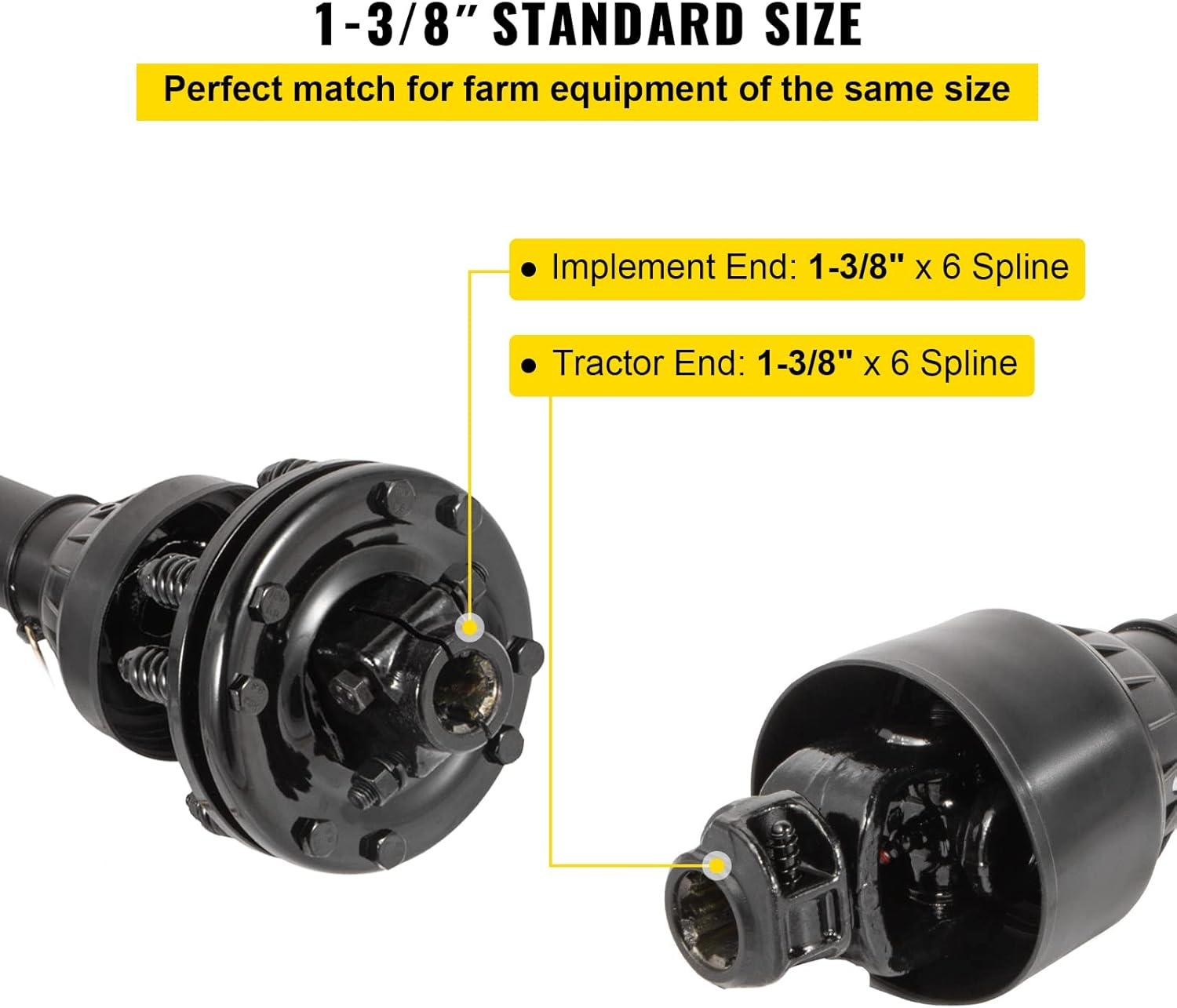

6 Spline Ends: Tractor end: 1-3/8″ x 6 Spline; implement end: 1-3/8″ x 6 Spline. Our brush hog PTO shaft matches perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Your machinery will be running like never before.

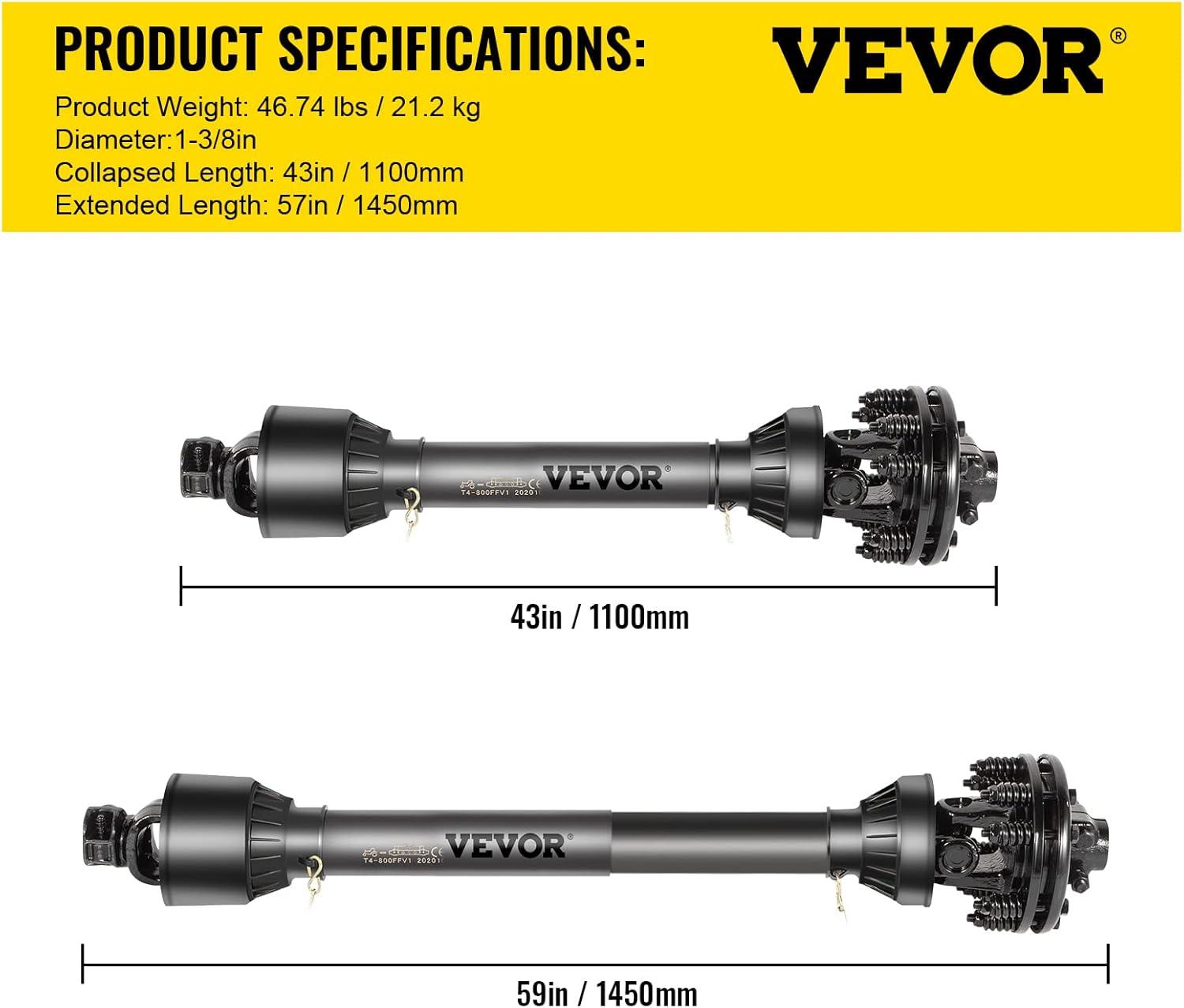

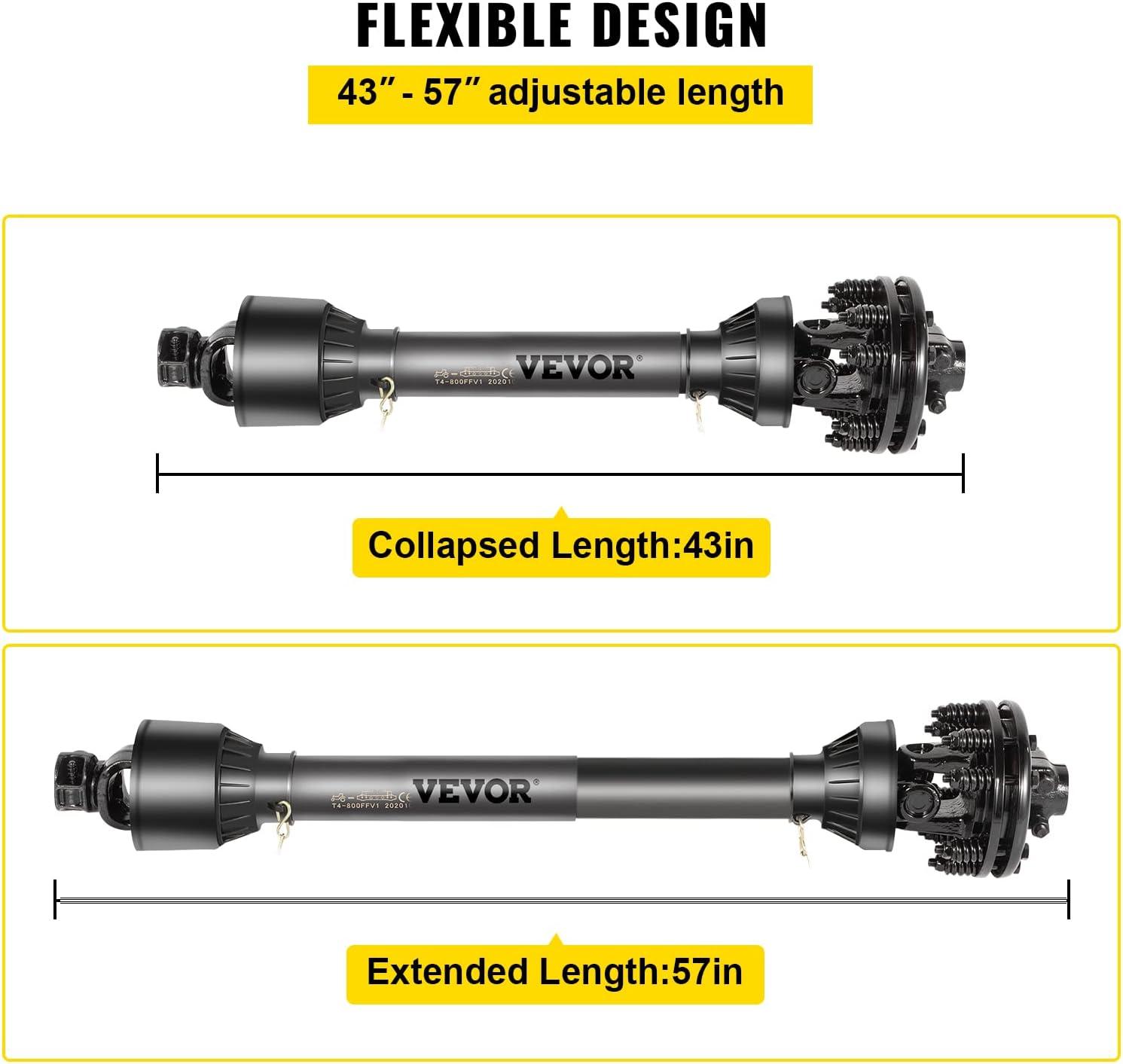

Adjustable Length: Compressed Length: 43″; Extended Overall Length: 57″. The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 47 Hp, 35 Kw, and 620 Nm torque at 540 rpm, while at 1000 rpm features 77 Hp, 55 Kw, and 500 Nm torque. It allows two sides of the PTO drive line shaft to spin at different speeds.

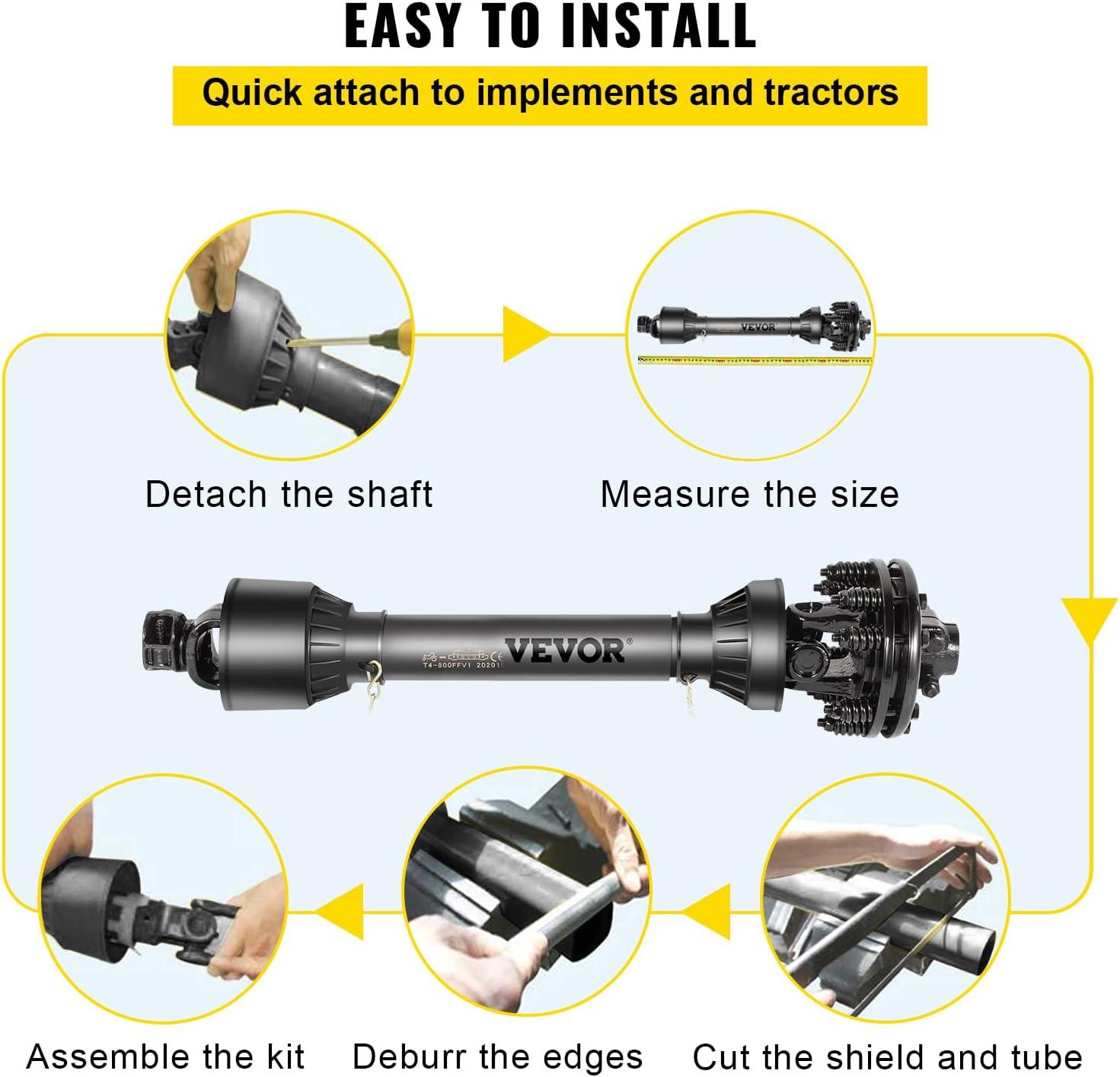

Easy Assembly ＆ Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for direct replacement. The slip clutch works as an extra security line for the PTO shaft to prevent further damage moving up the line. The security chain and plastic shield eliminate potential dangers in the transmission process.

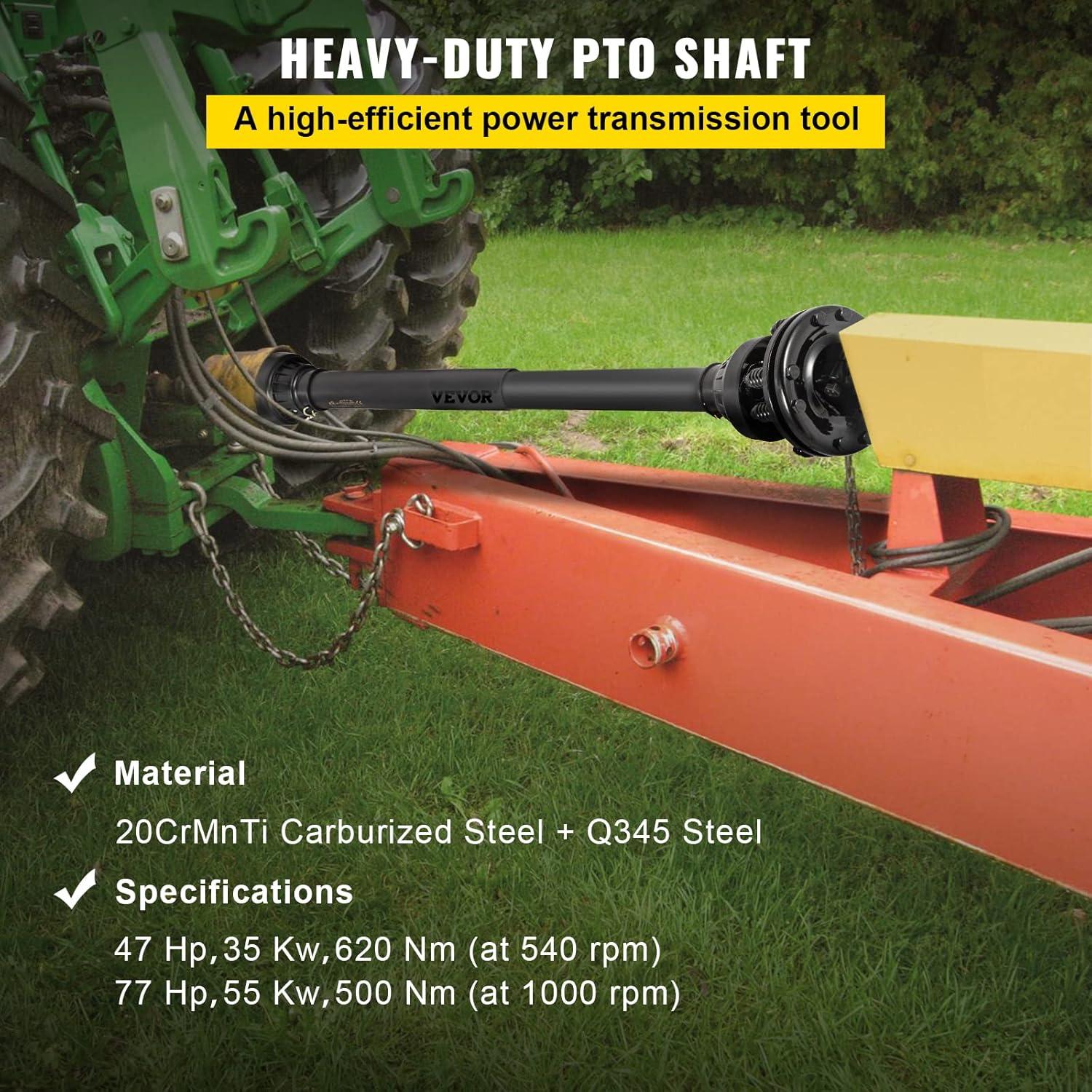

Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, rotary tillers, tractors, and more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner.
